Name: FES003 AC Current Switch, 1-40Amp Self Powered, Average RMS Sensing, 2.5Amp @ 120VAC. Trip Point is fixed at 1Amp
SKU: 797297

Product Details ＋

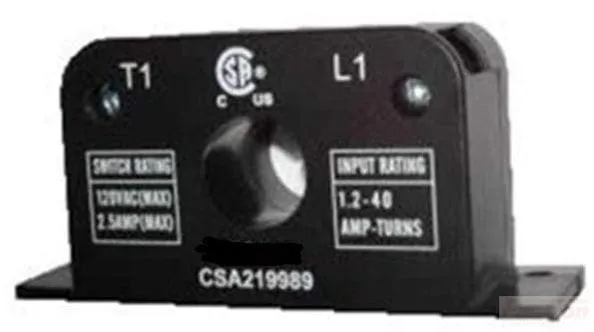

Fastron FES003 AC Current Switch Relay

Compact and versatile current switches for detection of 1 Amp Current with maximum 40Amp.

Features

Self Powered
Panel mounting
Eliminates insertion loss
Isolated plastic case recognised according to UL94-V0

Advantages

Highly accurate low current measurement down to 1Amp
High isolation between primary and secondary circuits
Easy installation

Applications

Fault Detection
Motor or Fan Protection

Application Domain

Energy and Automation

Specification

Fastron Part Number	FES003
Technology	Split Core AC Current Transformer
Alarm Type	NC Relay 2.5Amp @ 120VAC
Supply Voltage	Self Powered
Load Current (RMS)	1Amp to 40 Amp
Trip Point	1A Locked
Isolation	2kV (AC, 50Hz, 1 min)
Bandwidth	50/60Hz
Mounting Style	Panel Mount
Operating Temperature Range	-25°C / 70°C
Accuracy	1%
Termination Style	Screw Terminals
Unit Weight	200g
Certifications	UL E320368, CE, Rohs compliant

Datasheet

Compact and versatile transducers for high Isolation Measurements of DC currents from 0 to 400 Amp DC (higher with external sensor) with signal conditioning. Choice of output types: 4-20 mA, 0-5 V or 0-10 V

Features

VFD and SCR waveforms current measurement
Signal condtioned output
Din Rail mounting
Eliminates insertion loss
Isolated plastic case recognised according to UL94-V0

Advantages

Highly accurate low current measurement down to 1mA
High isolation between primary and secondary circuits
Easy installation

Applications

-VFD Controlled Loads

VFD output indicates how the motor and attached load are operating

-SCR Controlled Loads

Accurate measurement and control of DC Power Systems. Current measurement gives faster response than temperature measurement.

-Application Domain

Energy and Automation

Specification

Fastron Part Number	F921 DC Series
Technology	Closed Loop Hall Effect
Alarm Type	Relay C/O 4A @ 30VDC, 0.5 Amp @ 250VAC High and Low Alarm Latched or Non Latched
Supply Voltage	9-36V (48VDC Optional)
Load Current (RMS DC)	0-100mA up to 0-400Amp (higher with external sensor)
Output	0-10V, 0-5V, 0-20mA, 4-20mA
Isolation	2.5kV (AC, 50Hz, 1 min)
Bandwidth	DC
Mounting Style	Din Rail Mount
Operating Temperature Range	-25°C / 70°C
Accuracy	1%
Termination Style	Screw Terminals
Unit Weight	150g
Factory Pack Qty	6
