Model

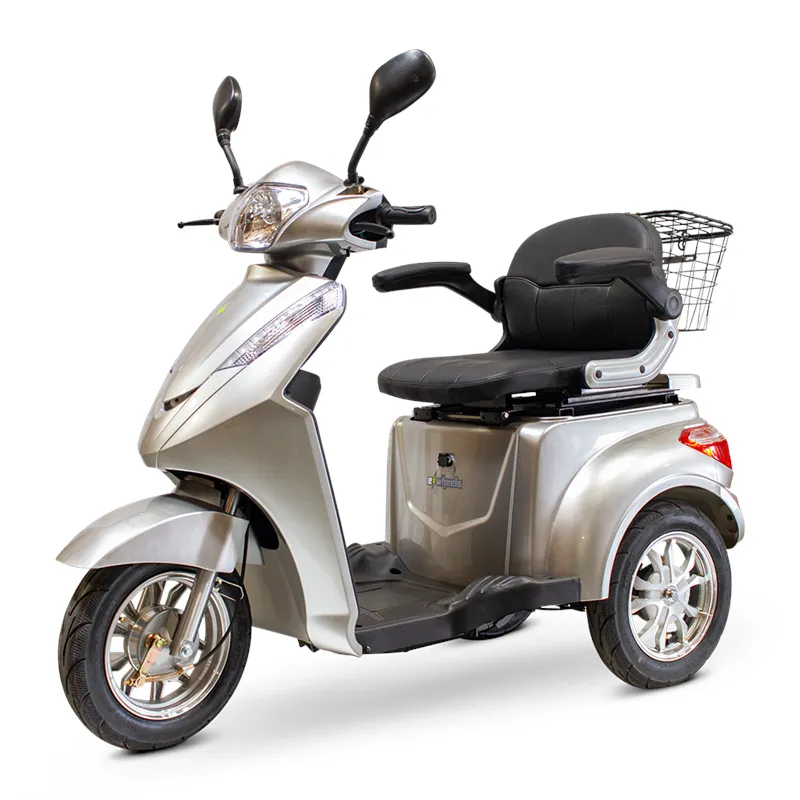

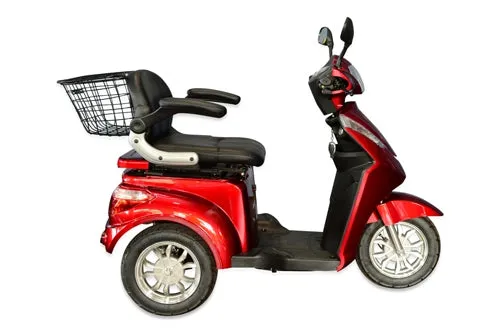

EW-38 Scooter

Weight Capacity

500lbs.

Distance:

43 miles per charge (distance varies on terrain, riders weight, road surface, etc.)

Front seat: Type

Adjustable Back rest / Sliding

Front seat: Size

20”x17 ½”x13” (LxWxH)

Rear seat: Size

20”x17 ½”x13” with rear basket Length 29”

Steering Height

39” from Ground

Turning Radius

63”

Power:

Electric

Watts:

700 Watt

Motor Type:

Transaxle differential brushless

Amps:

20 AH

Volts:

48 Volts

Dimensions:

61”x28”x43 ½”” (LxWxH)

Floor Clearance:

5”

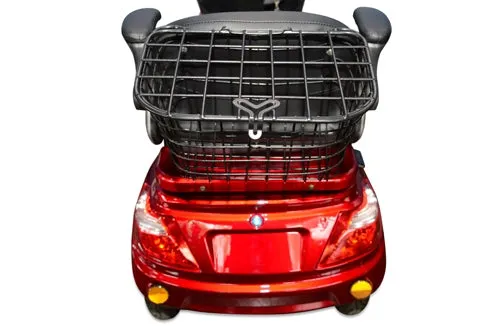

Rear Basket Dimensions:

13”x16”x11” (LxWxH)

Batteries:

(4) Sealed Lead Acid Maintenance Free

Forward/Reverse switch:

Yes

High/ Low Speed switch:

(3) Speed switch

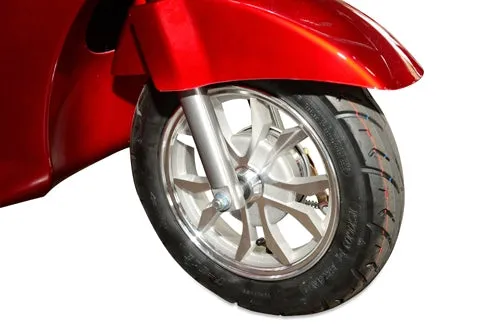

Front tire size:

16” tire type3.0 – 10 Tubeless

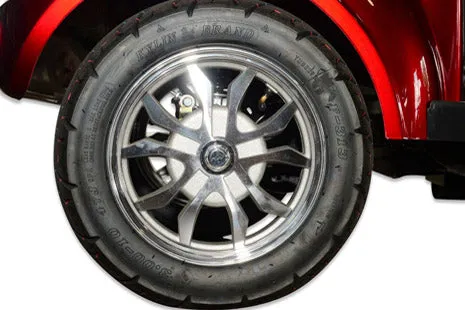

Rear tire size:

16” tire type: 3.0 – 10 Tubeless

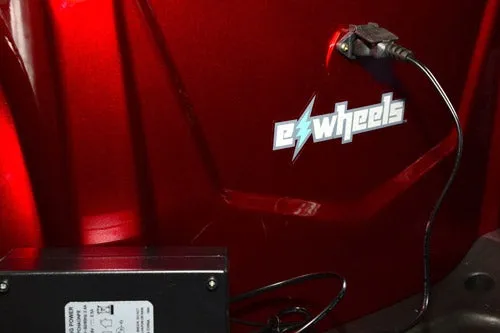

Charger:

48-volt Smart Charger included

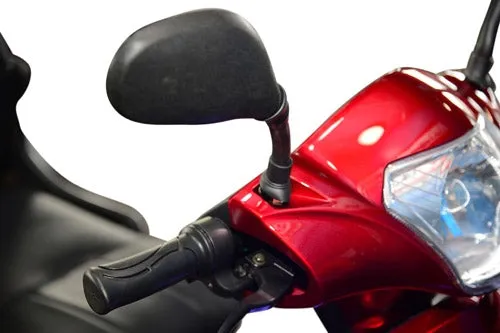

Throttle Type:

Variable Speed Control – Twist Throttle

Key Start:

Yes

Braking System:

Front and Rear drum brakes with Electronic Braking (EBS)

Drive System:

700 Watt Brushless Motor

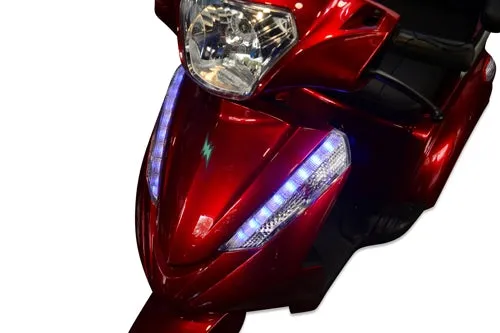

Headlight:

12v LED Lights

Rear lights:

12v Bulb

Carton Size:

Shipped Fully assembled on Pallet – 63”x 36”x 54” (LxWxH)

Scooter Weight:

224lbs with batteries

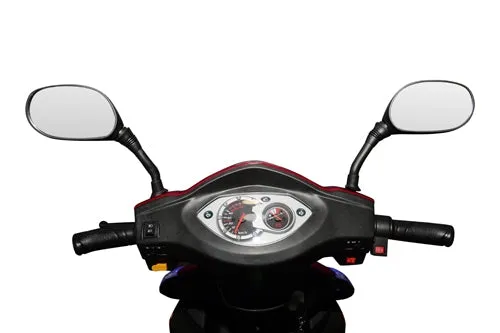

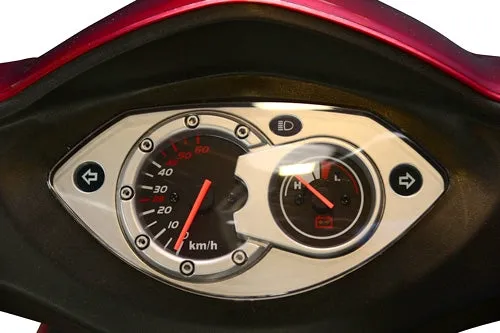

Battery Indicator:

Yes

Front Suspension:

Front Fork Shocks

Rear Suspension:

Rear Shock Absorbers

Reflectors:

(2) rear reflectors

Warranty:

Limited – 3 Year Warranty
