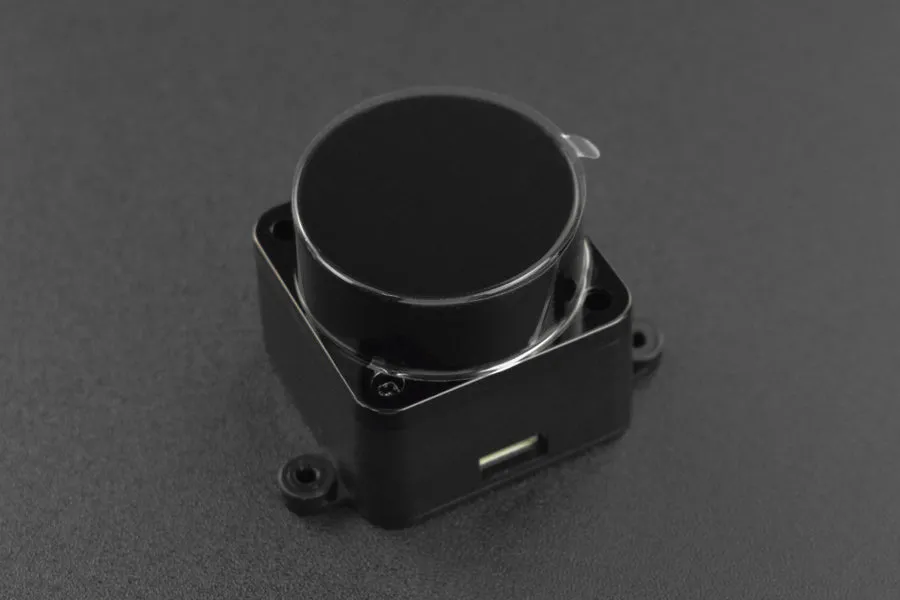

This LD19 LiDAR sensor offers a ranging distance of up to 12m and 360° environmental scanning, which can realize autonomous mapping, and obstacle detection.
The sensor is compact and light, and its size nearly equals to a ping-pong ball and the weight nearly to 2 AA dry batteries.
Also, it can resist the strong light of 30 Klux, which achieves high-precision distance measurement indoors and outdoors.
The provided SDK works well with both ROS1 and ROS2 systems.
And the adopted brushless motor boasts long-lasting operation with high-speed data transmission.
High cost-effective LiDAR, wide range of applications.
It is recommended to use it in drones, robot obstacle avoidance, smart sweeper, gesture control, 2D gesture recognition, etc.
Features:
Distance measurement up to 12m radiusCompact and stylishAnti-Strong Light InterferenceLong LastingApplications:
EducationScientific ResearchFrequency of shelf visitsRobot obstacle avoidanceAutonomous navigationNavigation and positioningSpecification:
Model: LD19Ranging Distance: 0.02m~12m (target reflectivity of 70%)Ranging Frequency: 4500HzScanning Frequency: 10HzTypicalRanging Average Accuracy: ±45mm (0.3m~12m)Ranging Standard Deviation: 10mm (0.3m~12m)Measurement Resolution: 15mmScanning Range: 360°Angle Error: ±2°Angle Resolution: 0.8°@10HzAmbient Light Resistance: 30KLuxLaser Wavelength: 895~915nmTypical 905nmPitch Angle: 0-2°Input Voltage: 5VOperating Current: 180mAProduct Power: 0.9WDimensions: 38.59*38.89*33.50mm/1.52*1.53*1.32” (L*W*H)Weight: 47gBaud Rate: 230400Communication Interface: UART (3.3V level)Operating Temperature: -10~40Storage Temperature: -30~70Motor: Brushless MotorDocuments:
Product Includes:
LD19 LiDAR Sensor ×1Adapter Board ×14PIN Cable ×1USB Cable ×1
