Product Description
DJI Agras T25- Agricultural Light and Nimble Drone
DESCRIPTION

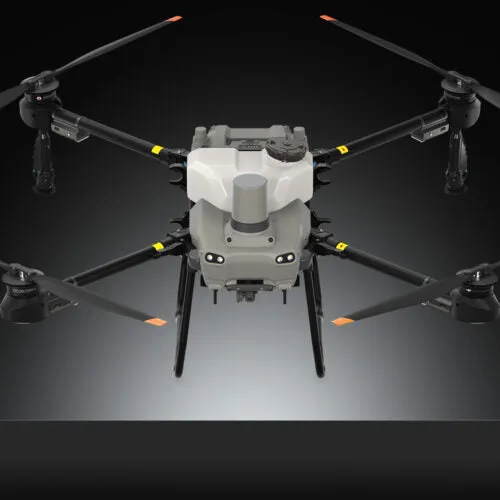

The DJI Agras T25 is a compact and efficient agricultural drone designed to redefine standards for farming operations. Lightweight and easy to handle, it is optimized for one-person operation while delivering powerful performance. With a maximum spraying payload of 20 kg and a spreading payload of 25 kg, the Agras T25 streamlines tasks like surveying, spraying, and spreading across a variety of terrains.

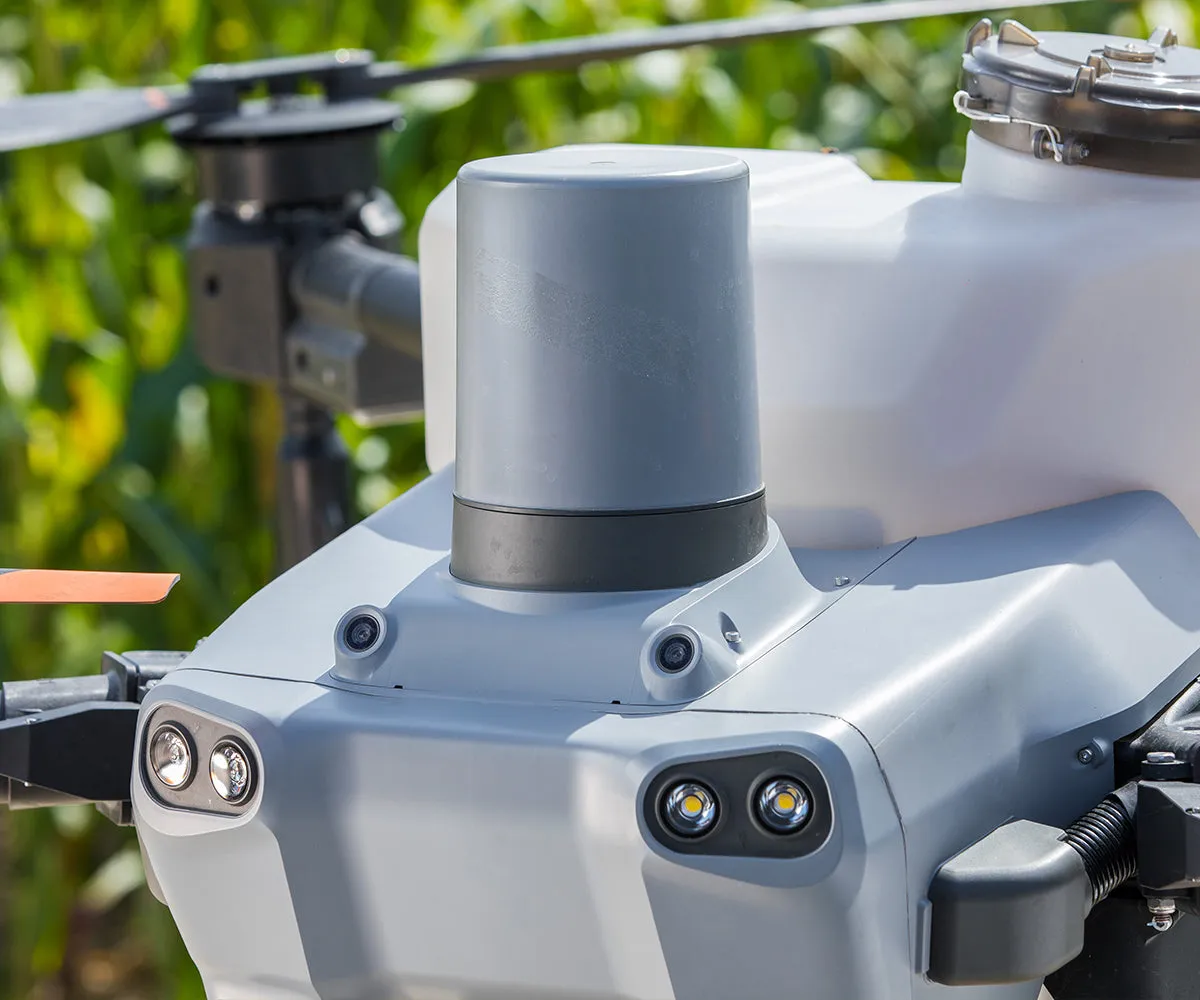

The Agras T25 features cutting-edge technology, including phased array radars, a binocular vision system, and a high-resolution FPV gimbal camera. Its advanced Dual Atomized Spraying System ensures precise application, with customizable droplet sizes and effective spray widths. Additionally, its rugged design includes an IP54 ingress protection rating, ensuring reliable performance in demanding conditions.
Whether for large-scale farms or specialized operations, the DJI Agras T25 delivers exceptional coverage, precision, and efficiency, making it the ultimate tool for modern agriculture.
Key Features
- Payload Capacity: 20 kg for spraying, 25 kg for spreading.
- Coverage Efficiency: Covers up to 12 hectares per hour.
- Dual Atomized Spraying System: Features four sprinklers with a max flow rate of 24 L/min.
- Advanced Sensing Technology: Includes phased array radars and binocular vision for precision navigation.
- Rugged Build: Dustproof, waterproof (IP54), and wind-resistant up to 6 m/s.
- High Mobility: Lightweight design for one-person operation.
Detailed Specification
Aircraft
| Attribute | Specification |
|---|---|
| Weight | 25.4 kg (excluding battery), 32 kg (including battery) |
| Max Take-Off Weight | 52 kg (spraying), 58 kg (spreading) |
| Dimensions | Unfolded: 2585×2675×780 mm; Folded: 1050×690×820 mm |
| Max Flight Radius | 2000 m |
| Max Wind Resistance | 6 m/s |
| IP Rating | IP54 |
Propulsion System
| Attribute | Specification |
|---|---|
| Propeller Material | Nylon carbon fiber filament |
| Propeller Dimension | 50 inches |
| Motor Power | 4600 W/rotor |
| Rotation Diameter | 1270 mm |
Spraying System
| Attribute | Specification |
|---|---|
| Tank Volume | 20 L |
| Payload | 20 kg |
| Sprinklers | LX8060SZ (4 sprinklers) |
| Droplet Size | 50-500 μm |
| Effective Spray Width | 4–7 m (at 3 m above crops) |
| Max Flow Rate | 16 L/min (2 sprinklers), 24 L/min (4 sprinklers) |
Spreading System
| Attribute | Specification |
|---|---|
| Tank Volume | 35 L |
| Payload | 25 kg |
| Spreading Range | Adjustable for 5–8 meters |
Sensing & Navigation
| Attribute | Specification |
|---|---|
| Phased Array Radars | Forward and Rear (360° FOV) |
| Binocular Vision Range | 0.5–29 m |
| GNSS Support | GPS, Galileo, BeiDou |
| RTK Positioning Accuracy | Horizontal: ±10 cm, Vertical: ±10 cm |
Remote Controller
| Attribute | Specification |
|---|---|
| Model | RM700B |
| Operating Frequency | 2.4 GHz, 5.8 GHz |
| Max Transmission Distance | 7 km (FCC) |
| Screen | 7.02-inch LCD touchscreen (1920×1200 resolution) |
| Battery Runtime | 3 hours 18 minutes (internal), 2 hours 42 minutes (external) |
| IP Rating | IP55 |
Battery & Charging
| Attribute | Specification |
|---|---|
| Battery Model | DB800 Intelligent Flight Battery |
| Capacity | 15,000 mAh |
| Charging Time | 9–12 minutes (per battery) |
In Package
- DJI Agras T25 Aircraft Body
- DB800 Intelligent Flight Battery (x1)
- Dual Atomizing Spraying System (4 sprinklers)
- Binocular Vision and Phased Array Radar System
- RM700B Remote Controller
- Intelligent Charger and Inverter Generator
- Installation Tools and Accessories
- User Manual and Safety Guidelines
