Product Details
＋

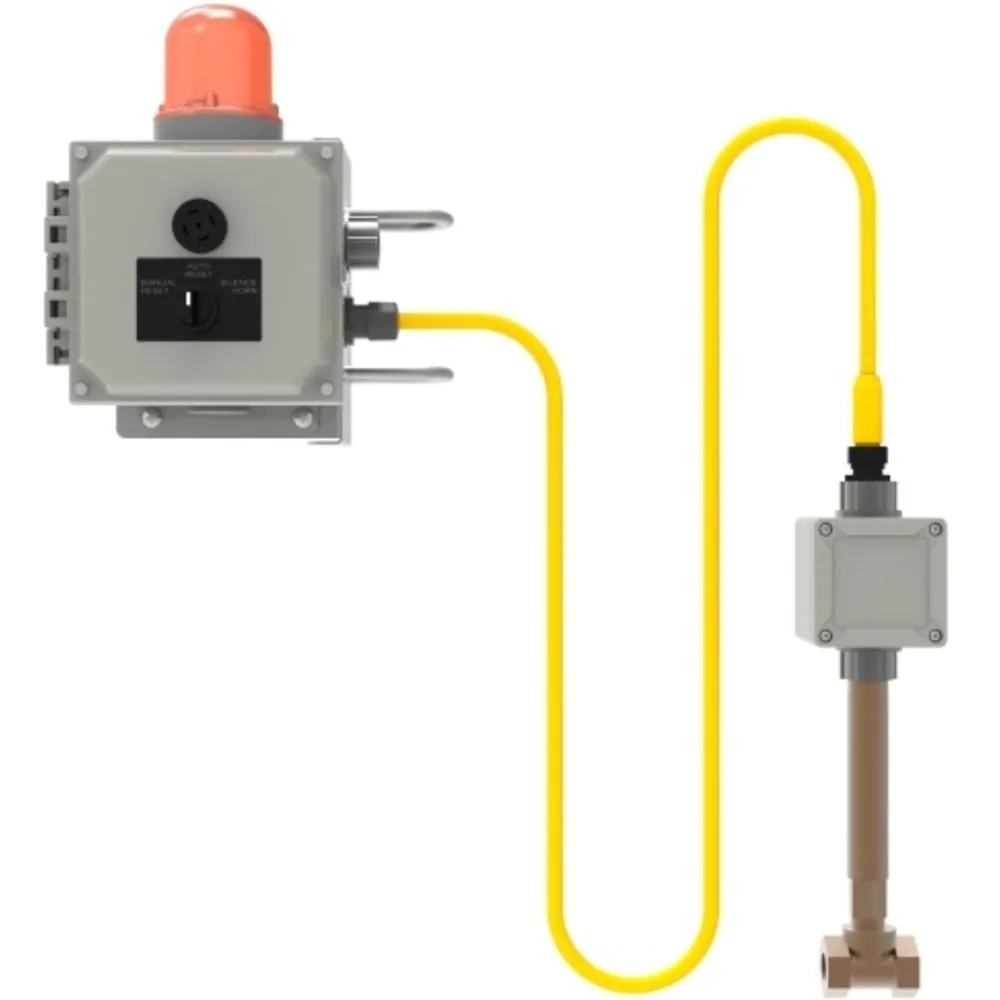

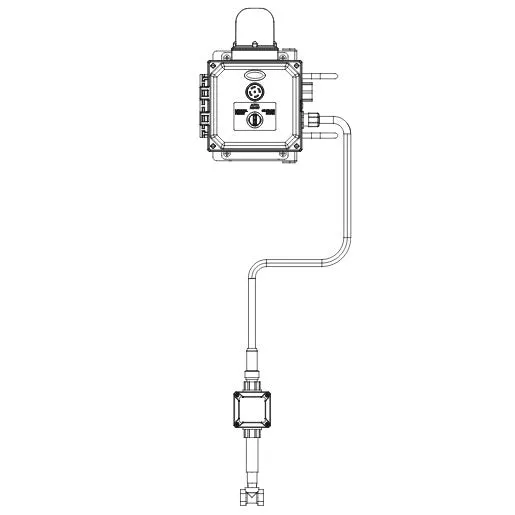

S19-324E - Emergency Signaling System with 6-foot Cable. System can be easily connected to most eyewash units which have ¬Ω" NPT inlet piping and a 5 GPM water inlet source. If fixture is top supplied, adequate space must be provided for vertical orientation of sensor. Consult installation manual for specific requirements. Remote location hookup is possible by using the contacts in the flow switch junction box or central control box.
- Automatic, audible and visual system
- Double pole, double throw flow switch
- Designed to meet NEMA No. 4XCode
- Easily connected to other Emergency Fixture units
- Silence switch with auto reset
- For indoor and outdoor applications
- Universal AC voltage: 90-264 AC, 50-60 Hz
- Extra contacts in central control board and flow switch for remote location hookup
