Operating on 3G 4G and even 5G frequencies in Australia and abroad this high grade antenna can be used in a range of residential commercial and industrial mobile broadband applications on any mobile network.

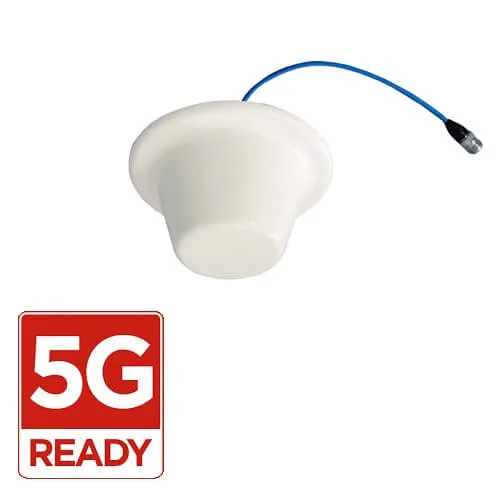

This is the ideal indoor antenna for Cel-Fi repeater systems. Indoor dome antennas are designed to be mounted to the ceiling of your building to provide consistently distributed mobile phone service from your Cel-Fi repeater/booster. The antenna is compact with a visually unobtrusive design similar to a smoke alarm.
The Blackhawk Omni Ceiling Antenna will provide the perfect solution for voice and data applications. Perfect for repeater applications that require a 360° beamwidth for complete internal coverage.
| Connector | N | 4.3-10 DIN Female |
| Dimensions | ᴓ 186×86 mm |
| Weight | 0.25 kg |
| Reflector Material | Aluminium |
| Radome Material | ABS (UV Stabilized) |
| Operating Temperature | -40°C to 65°C |
ELECTRICAL SPECIFICATIONS
| Frequency Range MHz | 698-960 | 1710-2700 | 3300-4000 |
| Gain dBi | 2.0 | 5.0 | 5.5 |
| VSWR | ≤1.8 | ≤1.5 | ≤1.5 |
| Polarization | Vertical | ||
| PIM 3rd Order 2x20W | ≤-150 dBc | ||
| Horizontal Beam-width | 360° | ||
| Vertical Beam-width | 85° | 54° | 28° |
| Input Impedance | 50 Ω | ||
| Max. Input Power | 50 W | ||
| Lightening Protection | DC Ground | ||
| Weight | 0.3 kg |
|---|
