Product Details
＋
Product Overview

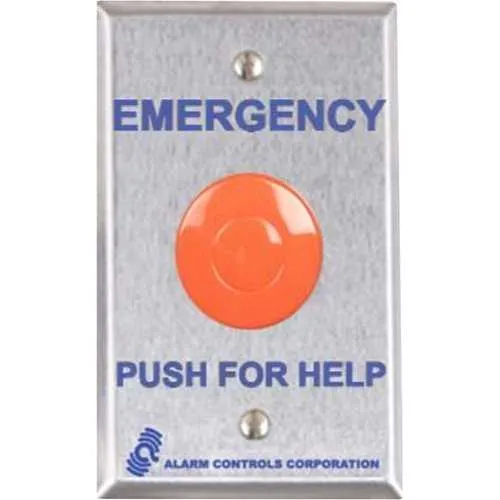

Single gang panic station with latching push button switch that remains active or inactive until actuated again. Choice of contact configurations ensures compatibility with most systems.
Features
Standard Features
- Single gang stainless steel wall plate, weather resistantto IP65 standards
- 1-1/2" red mushroom button
- Plate screened “EMERGENCY PUSH FOR HELP” to quickly call for assistance
- Alternate action switch
Options
- Plate: multiple finishes and widths available, specify when ordering
- Illumination: long life LED in 6V, 12V, 24V, 120V, specify when ordering
- GRGuard Ring
- LUCLift up cover
Specifications
Certifications & Listings:Conforms to IP65
Electrical:
- Available in any combination of N/O and/or N/C contact pairs. See table below.
- Contacts rated 10A at 5 VDC or 120 VAC
- Switch connection via screw terminals
- Switch depth behind plate: 2-1/2"
Operating Temperature: -13F to 158F (-25 to 70 C)
General Information
Name: Alarm Controls PBL-1-GR Latching Panic Station, One N/O Pair and One N/C Pair, Guard Ring, ASSA ABLOY, Alarm Controls by ASSA ABLOY
Category: Alarm Controls by ASSA ABLOY, Access Control, Egress Devices, Emergency Buttons
UPC Code: 604840963299
Country of Origin: United States. Country of origin is subject to change.
