Product Details
＋
Product Overview

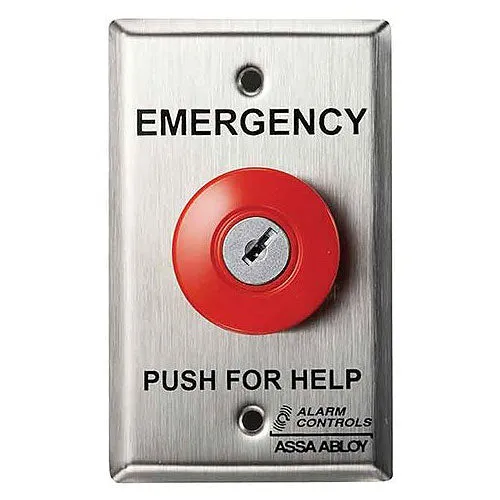

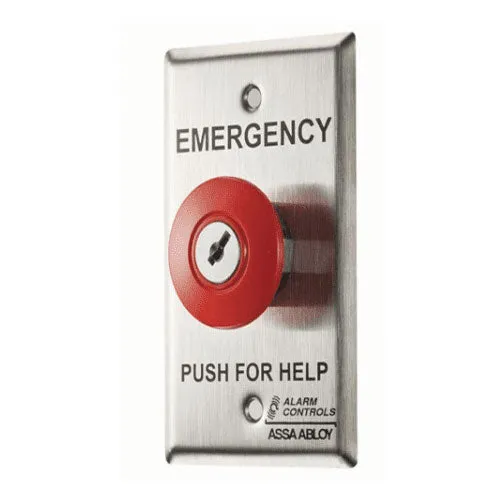

Single gang panic station with latching key reset. Once activated the push button automatically latches, requiring the use of a key to reset. Ideal for applications requiring a personal response to an alarm condition. Choice of contact configurations ensures compatibility with most systems.
Features
Standard Features
- Single gang stainless steel wall plate, weather-resistant to IP40 standards
- 1-1/2” red mushroom button
- Plate screened “EMERGENCY PUSH FOR HELP” to quickly call for assistance
- Alternate action switch
Options
- Plates: multiple finishes and widths available, specify when ordering
- KR-1KEYReplacement key
Specifications
Certifications & Listings:Conforms to IP40
Electrical:
- Available in any combination of N/O and/or N/C contact pairs. See table below.
- Contacts rated 10A at 35 VDC or 120 VAC
- Switch connection via screw terminals
- Switch depth behind plate: 2”
Operating Temperature:-13F to 158 F (-25 to 70 C)
General Information
Name: Alarm Controls KR-1 Push Button, ASSA ABLOY, Alarm Controls
Category: Alarm Controls Corporation, Access Control & Communications, Locking Devices, Exit Devices & Push Buttons
UPC Code: 604840962001
Country of origin: United States. Country of origin is subject to change.
